Product Summary
The US1M is a amp surface mount glass fast recovery rectifier.
Parametrics
US1M absolute maximum ratings: (1)Maximum Recurrent Peak Reverse Voltage : 1000 V; (2)Maximum RMS Input Voltage : 700 V; (3)Maximum DC Blocking Voltage : 1000 V; (4)Peak Forward Surge Current 8.3 ms Single Hart-sine-wave Superimposed On Rated Load : 30 A; (5)Maximum DC Forward Voltage Drop Per Element At 1.0A DC : 1.7 V; (6)Maximum Reverse Current At Rated DC Blocking Voltage per Element @TA=25℃ : 5μA; (7)Maximum Reverse Current At Rated DC Blocking Voltage per Element @TA=100℃ : 100μA; (8)Maximum Reverse Recovery : 75 nS; (9)Typical Junction Capacitance : 10 pF; (10)Maximum Thermal Resistance: 30℃/W; (11)Operating Temperature Range : -65 to +150 ℃; (12)Storage Temperature Range: 65 to +150 ℃.
Features
US1M features: (1)Rating to 1000V PRV; (2)For surface mount applications; (3)Reliable low cost construction utilizing molded plastic technique; (4)Glass passivated junction; (5)High temperature soldering: 250℃/10 seconds at terminal; (6)UL recognized 94V-O plastic material; (7)Fast switching for high efficiency.

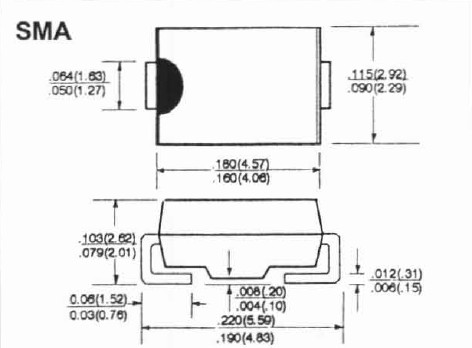

Diagrams
