Product Summary
The ZM4742A-13 is a 1.0W surface mount zener diode.
Parametrics
ZM4742A-13 absolute maximum ratings: (1)Zener Current (see Table page 2) IZ: Pd/Vz mA; (2)Power Dissipation @ TA = 25℃ Pd: 1W; (3)Thermal Resistance - Junction to Ambient Air RθJA: 170 K/W; (4)Forward Voltage @ IF = 200 mA VF: 1.2 V; (5)Operating & Storage Temperature Range Tj, TSTG: -65 to +200℃.
Features
ZM4742A-13 features: (1)1.0W Power Dissipation; (2)3.9V - 100V Nominal Zener Voltages; (3)Standard VZ Tolerance is 5%.

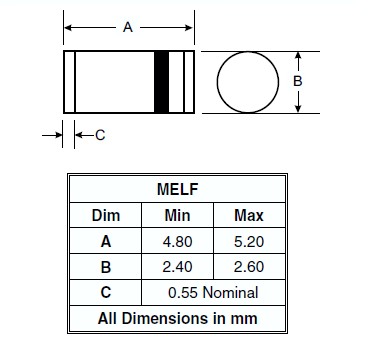

Diagrams
 |
