Product Summary

The LM317TG is an adjustable 3-terminal positive voltage regulator capable of supplying in excess of 1.5 A over an output voltage range of 1.2 V to 37 V. This voltage regulator is exceptionally easy to use and requires only two external resistors to set the output voltage. Further, it employs internal current limiting, thermal shutdown and safe area compensation, making it essentially blow.out proof. The LM317TG serves a wide variety of applications including local, on card regulation. The LM317TG can also be used to make a programmable output regulator, or by connecting a fixed resistor between the adjustment and output, the LM317 can be used as a precision current regulator.

Parametrics

LM317TG absolute maximum ratings: (1)Input.Output Voltage Differential VI-VO: 40 Vdc; (2)Power Dissipation Case 221A TA = +25℃ PD: Internally Limited W; (3)Thermal Resistance, Junction-to-Ambient θJA: 65℃/W; (4)Thermal Resistance, Junction-to-Case θJC: 5.0℃/W; (5)Case 936 (D2PAK.3) TA = +25℃ PD: Internally Limited W; (6)Thermal Resistance, Junction-to-Ambient: 70℃/W; (7)Thermal Resistance, Junction-to-Case: 5.0℃/W; (8)Operating Junction Temperature Range TJ: -55 to +150℃; (9)Storage Temperature Range Tstg: -65 to +150℃.

Features

LM317TG features: (1)Output Current in Excess of 1.5 A; (2)Output Adjustable between 1.2 V and 37 V; (3)Internal Thermal Overload Protection; (4)Internal Short Circuit Current Limiting Constant with Temperature; (5)Output Transistor Safe-Area Compensation; (6)Floating Operation for High Voltage Applications; (7)Available in Surface Mount D2PAK-3, and Standard 3-Lead Transistor Package; (8)Eliminates Stocking many Fixed Voltages; (9)Pb-Free Packages are Available.

Diagrams

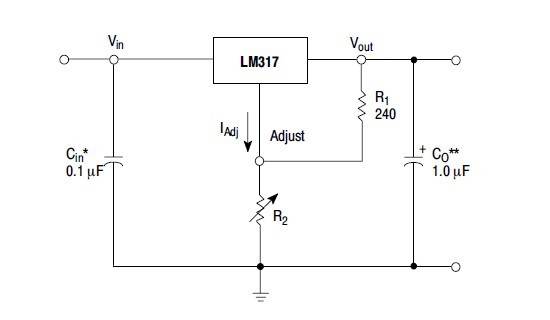

LM317TG block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

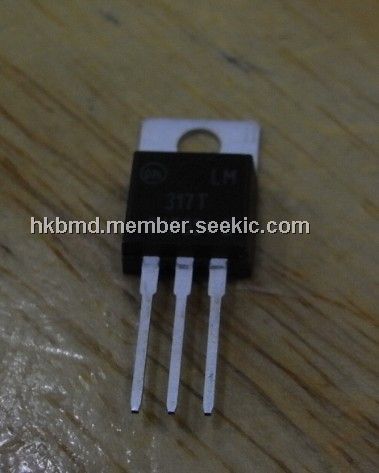

LM317TG
LM317TG

ON Semiconductor

Linear Regulators - Standard 1.5A ADJ 1.2-37V Positive

Data Sheet

0-1: $0.31
1-25: $0.26
25-100: $0.18
100-500: $0.15
