Product Summary
The SMBJ10A-E3 is a 600W surface mount transient voltage suppressor.
Parametrics
SMBJ10A-E3 absolute maximum ratings: (1)Peak Pulse Power Dissipation (Non repetitive current pulse derated above TA = 25℃) (Note 1) PPK: 600W; (2)Peak Power Derating Above 25℃ Pder: 4.8 W/℃; (3)Peak Forward Surge Current, 8.3ms Single Half Sine Wave Superimposed on Rated Load (Notes 1, 2, & 3) IFSM: 100A; (4)Steady State Power Dissipation @ TL = 75℃ PM(AV): 5.0W; (5)Instantaneous Forward Voltage @ IPP = 35A VBR＜100V: 3.5V; (6)Operating Temperature Range Tj: -55 to +150℃; (7)Storage Temperature Range TSTG: -55 to +175℃.
Features
SMBJ10A-E3 features: (1)600W Peak Pulse Power Dissipation; (2)5.0V - 170V Standoff Voltages; (3)Glass Passivated Die Construction; (4)Uni- and Bi-Directional Versions Available; (5)Excellent Clamping Capability; (6)Fast Response Time.

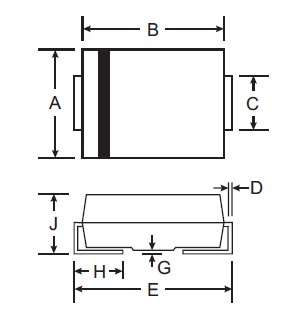

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SMBJ10A-E3/1 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 10V 5% Unidir |
Data Sheet |
Negotiable |
|
||||||||||||
|
SMBJ10A-E3/2 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 10V 5% Uni |
Data Sheet |
Negotiable |
|
||||||||||||
|
SMBJ10A-E3/52 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 10V 5% Uni |
Data Sheet |
|
|
||||||||||||
|
SMBJ10A-E3/2C |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 10V 5% Uni |
Data Sheet |
Negotiable |
|
||||||||||||
|
SMBJ10A-E3/51 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 10V 5% Uni |
Data Sheet |
Negotiable |
|
||||||||||||
|
SMBJ10A-E3/55 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 10V 5% Uni |
Data Sheet |
Negotiable |
|
||||||||||||
|
SMBJ10A-E3/5B |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 10V 5% Uni |
Data Sheet |
|
|
||||||||||||
