Product Summary
The SMAJ33A is a 400W surface mount transient voltage suppressor.
Parametrics
SMAJ33A absolute maximum ratings: (1)Peak Pulse Power Dissipation (Non repetitive current pulse derated above TA = 25℃) PPK: 400W; (2)Peak Forward Surge Current, 8.3ms Single Half Sine Wave Superimposed on Rated Load (JEDEC Method) IFSM: 40A; (3)Instantaneous Forward Voltage @ IPP = 35A (Notes 1, 2, & 3) VF: 3.5V; (4)Operating and Storage Temperature Range Tj, TSTG: -55 to +150℃.
Features
SMAJ33A features: (1)400W Peak Pulse Power Dissipation; (2)5.0V - 170V Standoff Voltages; (3)Glass Passivated Die Construction; (4)Uni- and Bi-Directional Versions Available; (5)Excellent Clamping Capability; (6)Fast Response Time; (7)Plastic Material: UL Flammability Classification Rating 94V-0.

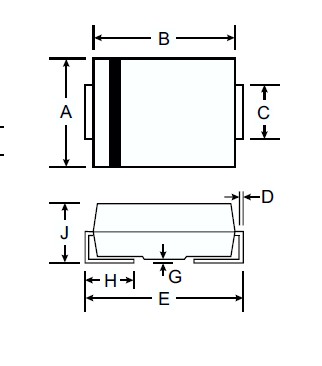

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SMBJ33A |
Bourns |
TVS Diodes - Transient Voltage Suppressors 33volts 5uA 11.3 Amps Uni-Dir |
Data Sheet |
|
|
||||||||||||
 |
SMBJ33A R4 |
Taiwan Semiconductor |
TVS Diodes - Transient Voltage Suppressors 33V 600W 5% Uni |
Data Sheet |
|
|
||||||||||||
|
SMBJ33A/1 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 33V 5% Unidir |
Data Sheet |
Negotiable |
|
||||||||||||
|
SMBJ33A/2 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 33V 5% Uni |
Data Sheet |
Negotiable |
|
||||||||||||
|
SMBJ33A/2B |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 33V 5% Uni |
Data Sheet |
Negotiable |
|
||||||||||||
|
SMBJ33A/5 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 33V 5% Uni |
Data Sheet |
Negotiable |
|
||||||||||||
|
SMBJ33A/52 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 33V 5% Uni |
Data Sheet |
Negotiable |
|
||||||||||||
 |
SMBJ33A/54 |
|
TVS J-LEAD 600W 33V UNI-DIR SMD |
Data Sheet |
|
|
||||||||||||
