Product Summary
The SML4734-E3 is a Surface Mount Zener Diode.
Parametrics
SML4734-E3 absolute maximum ratings: (1)Power dissipation TL = 75℃ Ptot: 1.0W; (2)Maximum junction temperature Tj: 150℃; (3)Storage temperature range TS: - 65 to + 150℃.
Features
SML4734-E3 features: (1)Plastic package has Underwriters Laboratory Flammability Classification 94 V-0; (2)For surface mounted applications; (3)Low Zener impedance; (4)Low regulation factor; (5)High temperature soldering guaranteed: 260℃/10 seconds at terminals; (6)Standard voltage tolerance is 10 %, Suffix A ±5 %.

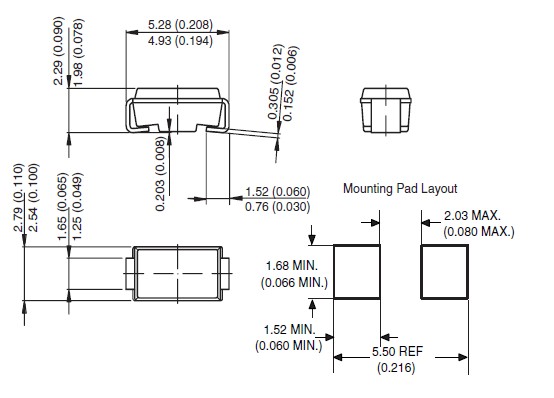

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SML4734-E3/61 |
Vishay Semiconductors |
Zener Diodes 5.6 Volt 1 Watt 10% |
Data Sheet |
|
|
|||||||||||||
