Product Summary
The BA7623F-E2 is a 75Ω driver IC with 3 internal circuits. Since the input is coming directly with no bias at the base pin, the DC potential for the previous stage can be used for direct DC coupling. Each output can drive two loads. Its applications include video cassette recorders, televisions and camcorders.
Parametrics
BA7623F-E2 absolute maximum ratings: (1)power supply voltage: 8V; (2)Power dissipation: 550mW; (3)operating temperature: -25 to 75℃; (4)storage temperature: -55 to 125℃.
Features
BA7623F-E2 features: (1)Can be directly coupled to the previous circuit; (2)Each output can drive two loads.

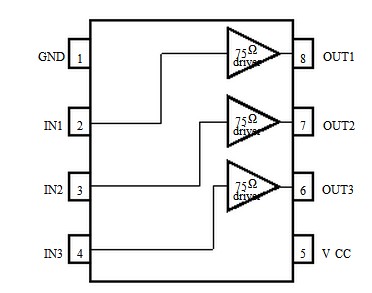

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BA7623F-E2 |
ROHM Semiconductor |
Video ICs DRIVER 75 ohm OHM |
Data Sheet |
|
|
||||||||
