Product Summary
The ER2J is a surface mount superfast rectifier.
Parametrics
ER2J absolute maximum ratings: (1)Maximum Recurrent Peak Reverse Voltage: 600V; (2)Maximum RMS Voltage VRMS: 420V; (3)Maximum DC Blocking Voltage VDC: 600V; (4)Maximum Average Forward Rectified Current, at TL=110℃ I(AV): 2.0Amps; (5)Maximum Instantaneous Forward Voltage at 2.0A VF: 1.7V; (6)Maximum DC Reverse Current TA=25℃: 5A; (7)At Rated DC Blocking Voltage TA=100℃: 150A; (8)Maximum Reverse Recovery Time (Note 1) TRR: 35.0 nS; (9)Typical Junction capacitance (Note 2) CJ: 25.0 PF; (10)Typical Thermal Resistance (Note 3) RθKJL: 20.0℃/W; (11)Operating and Storage Temperature Range TJ,TSTG: -50 to +150℃.
Features
ER2J features: (1)For surface mounted applications; (2)Low profile package; (3)Built-in strain relief; (4)Easy pick and place; (5)Superfast recovery times for high efficiency; (6)Plastic package has Underwriters Laboratory Flammability Classification 94V-O; (7)Glass passivated junction; (8)High temperature soldering: 260℃/10 seconds at terminals.

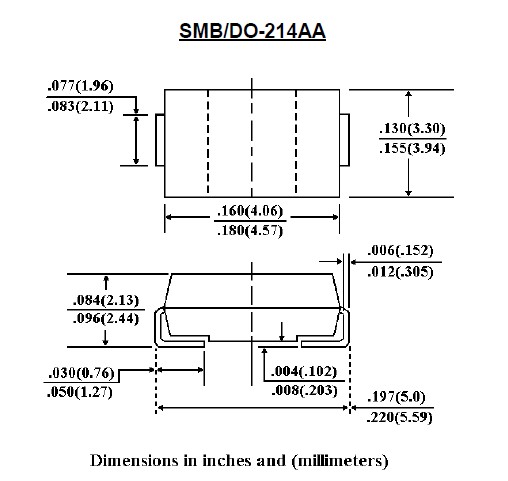

Diagrams
